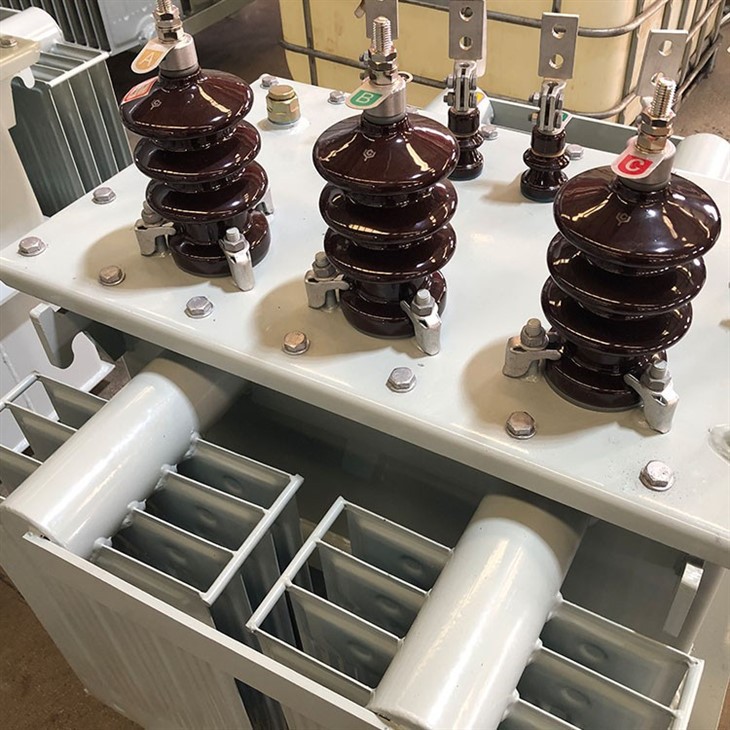

100 KVA Pole Mounted Transformer
Rated Voltage:100KVA
Standard: IEC 60076
Cooling Mode: ONAN
Rated Voltage: 11KV/0.415KV
Phase: 3 phase
Frequency:50HZ
Features
Baoding Zhongyi Electric Corporation is one of the leading manufacturers and suppliers of 100 kva pole mounted transformer in China, featured by quality products and good price. Please rest assured to buy advanced 100 kva pole mounted transformer for sale here from our factory.
100 KVA Transformer Specification:
Rated Voltage | 100KVA |
Standard | IEC 60076 |
Cooling Mode | ONAN |
Rated Voltage | 11KV/0.415KV |
Phase | 3 phase |
Frequency | 50HZ |
100 KVA Transformer Amps | 5.25A/139.12A |
100 KVA Transformer Load Capacity | 80KW |
100 KVA Transformer Maximum Load | 80KW |
Vector Group | Dyn11 |
Load Loss | 1680W |
No Load Loss | 245W |
No-Load Current | 0.93% |
Impedance at 75℃ | 3.9% |
Winding Material | Copper |
100 KVA Transformer Size | 1000*750*800mm |
Weight Of Copper In 100 KVA Transformer | 200kg |
Weight Of 100 KVA Transformer | 615kg |
Power Transformer 100 KVA Price | USD1*00.00/SET |
100 KVA Transformer Details
100 KVA Transformer Nameplate:
100 KVA Transformer Drawing:
