Products
315 KVA Transformer
Rated Voltage:10/0.4
Rated Current:315KVA
Frequency:50HZ
Current Rating:18.2/455A
Connection Group:Dyn11
Cooling Method:ONAN
Features
Baoding Zhongyi Electric Corporation is one of the leading manufacturers and suppliers of 315 kva transformer in China, featured by quality products and good price. Please rest assured to buy advanced 315 kva transformer for sale here from our factory.
315 KVA Transformer Specification
Rated Voltage | 10/0.4 |
Rated Current | 315KVA |
Frequency | 50HZ |
Current Rating | 18.2/455A |
Connection Group | Dyn11 |
Cooling Method | ONAN |
No-load Current | 0.5% |
No-Load Loss | 0.34KW |
Impedance (75℃) | 4% |
Load Loss | 3.83KW |
Total Loss | 4.17KW |
Oil BDV Value | ≥35KV |
Insulation Level | LI75/AC35 |
Oil Capacity | 200KG |
Copper Weight | 400KG |
Weight | 800KG |
Dimensions | 1100*900*900mm |

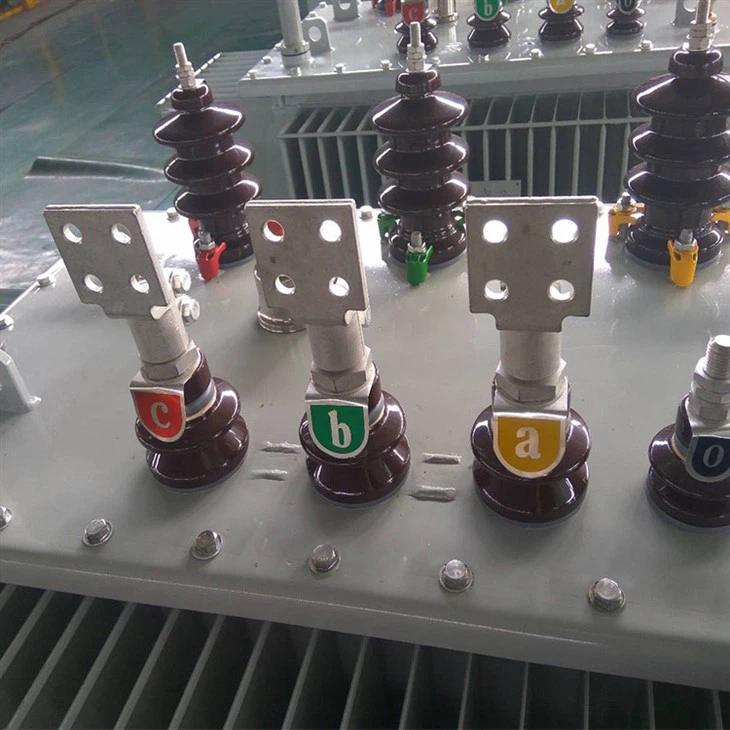

315 KVA Transformer Details

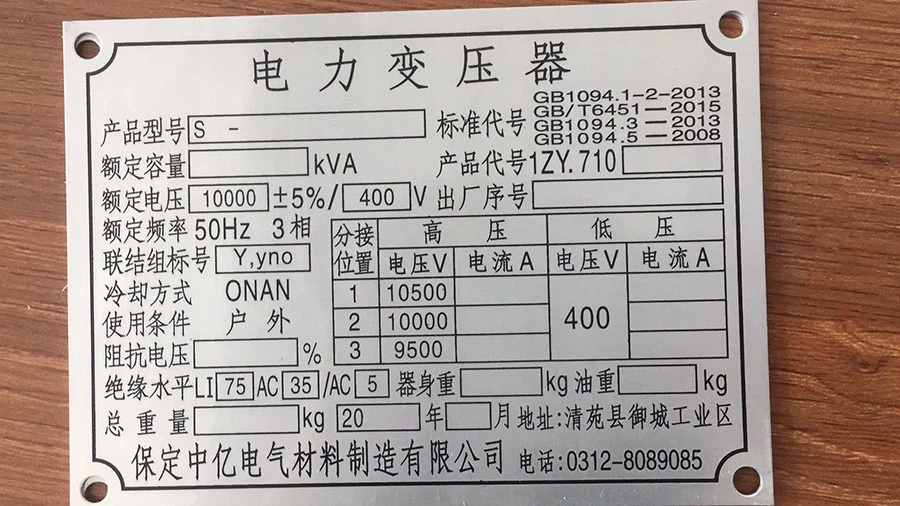

315 KVA Transformer Nameplate
