100 KVA 3 Phase Oil Cooled Distribution Transformer
Rated Voltage: 6kv 10kv 22kv 33kv and so on
Provide ODM OEM Service
delivery time: within 7 working days
Warranty: 2 Years
Features
2-YEARS WARRANTY
Our sales manager Grace with 10-years distribution transformer exporter experience
Will Help You Make Technical Solutions and Shipment Solutions
Contact Grace Now!
Products Description
100 KVA Distribution Transformer Specification:
100 KVA Transformer Capacity | High Voltage (kV) | Tap Range of High Voltage | Low Voltage (kV) | Connection Symbol | No-load Loss of 100 KVA Transformer (W) | Load Loss (W) | No-load Current (%) | Short-circuit Impedance (%) |
100 | 6 6.3 10 10.5 | ±5% ±2X2.5% | 0.4 | Dyn11 Yzn11 Yyn0 | 200 | 1580/1500 | 2.1 | 4 |
100 | 20 22 | ±5% ±2X2.5% | 0.4 | Dyn11 Yzn11 Yyn0 | 200 | 1730/1650 | 1.6 | 5.5 |
100 | 33 35 38.5 | ±5% ±2X2.5% | 0.4 | Dyn11 Yyn0 | 230 | 2010/1910 | 1.1 | 6.5 |
the efficiency of a 100 kva transformer is 0.98
100 KVA 3 Phase Oil Cooled Distribution Transformer Conditions of Use:
1 Ambient temperature: -15℃~+40℃
2 relative humidity: ≤85%
100 KVA Transformer Winding
Products Details
100 kVA Transformer Details
100 KVA 3 Phase Oil Cooled Distribution Transformer 1

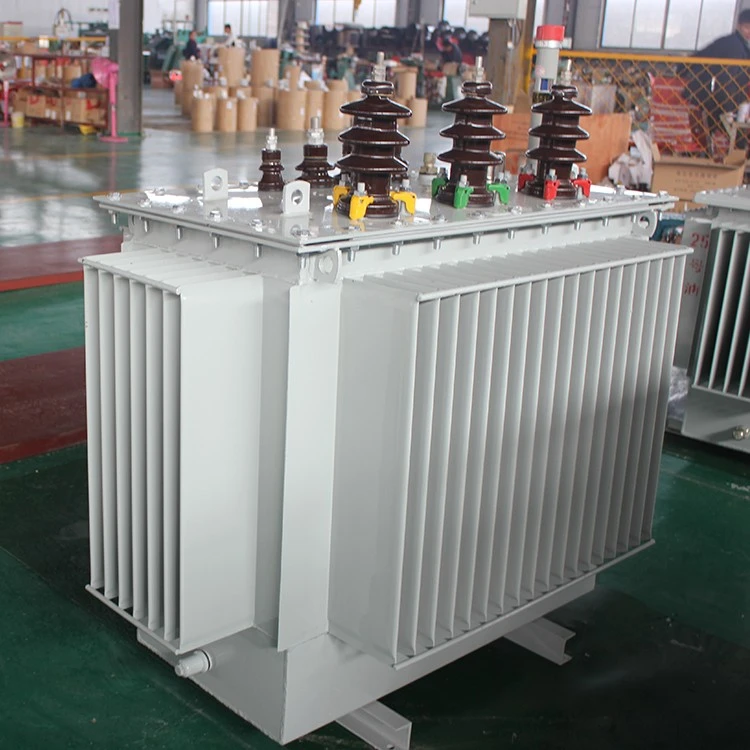

100 KVA 3 Phase Oil Cooled Distribution Transformer 2
100 KVA 3 Phase Oil Cooled Distribution Transformer 3
100 KVA 3 Phase Oil Cooled Distribution Transformer 4
Our Service
We can customize transformer as per your requirements.
Please provide the following data when placing an order, so we can service you better.
1. Type of transformer (Oil Type or Dry Type)
2. Rated capacity
3. Input voltage/ Output voltage
4. Phase number (single phase or three phase)
5. Frequency(50hz or 60hz)
